Desktop(VNC) Example

Launch Xvfb + x11vnc + fluxbox in OpenSandbox to provide a VNC-accessible desktop environment.

Build the Desktop Sandbox Image

The Dockerfile in this directory builds a sandbox image with desktop and VNC components pre-installed:

cd examples/desktop
docker build -t opensandbox/desktop:latest .

This image includes:

• Xvfb (virtual framebuffer X server)
• x11vnc (VNC server)

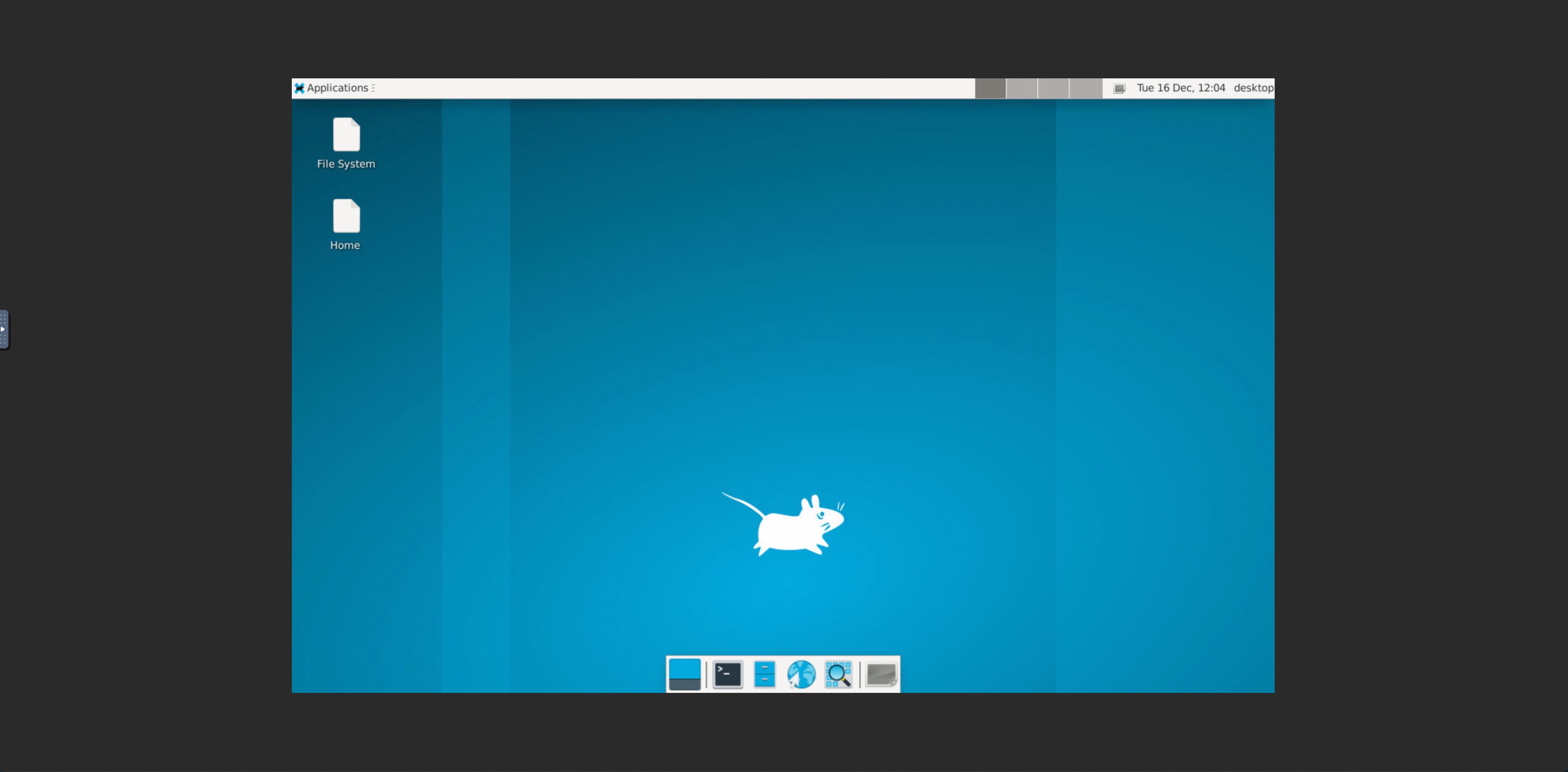

• XFCE desktop (panel, file manager, terminal)
• Non-root user (desktop) for security

Start OpenSandbox server [local]

Pre-pull the desktop image:

docker pull opensandbox/desktop:latest

Start the local OpenSandbox server:

uv pip install opensandbox-server
opensandbox-server init-config ~/.sandbox.toml --example docker
opensandbox-server

Create and Access the Desktop Sandbox

# Install OpenSandbox package
uv pip install opensandbox

uv run python examples/desktop/main.py

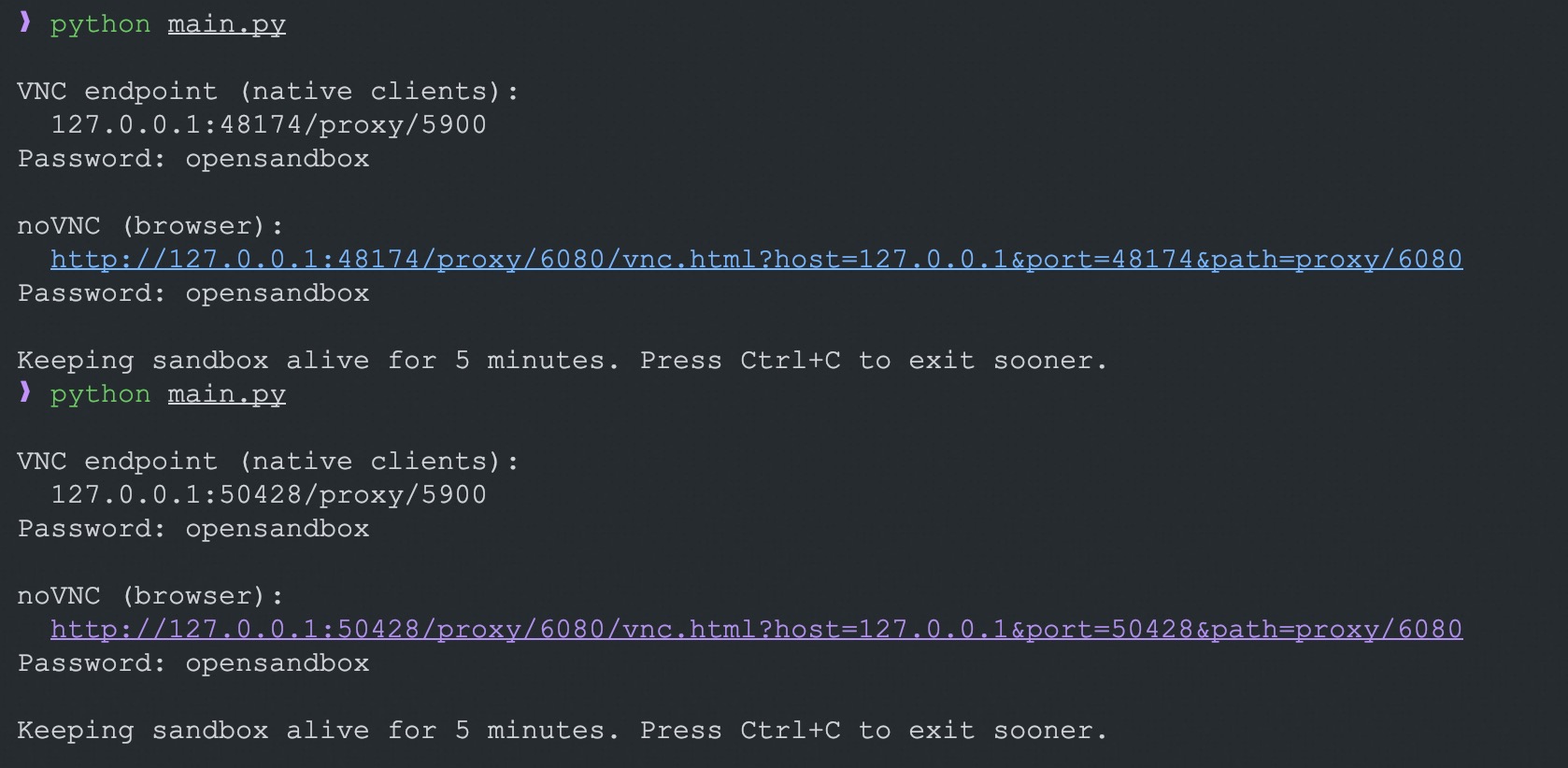

The script starts the desktop stack (Xvfb + XFCE + x11vnc) and also launches noVNC/websockify. It prints:

• VNC endpoint (endpoint.endpoint) for native VNC clients, password from VNC_PASSWORD (default: opensandbox)

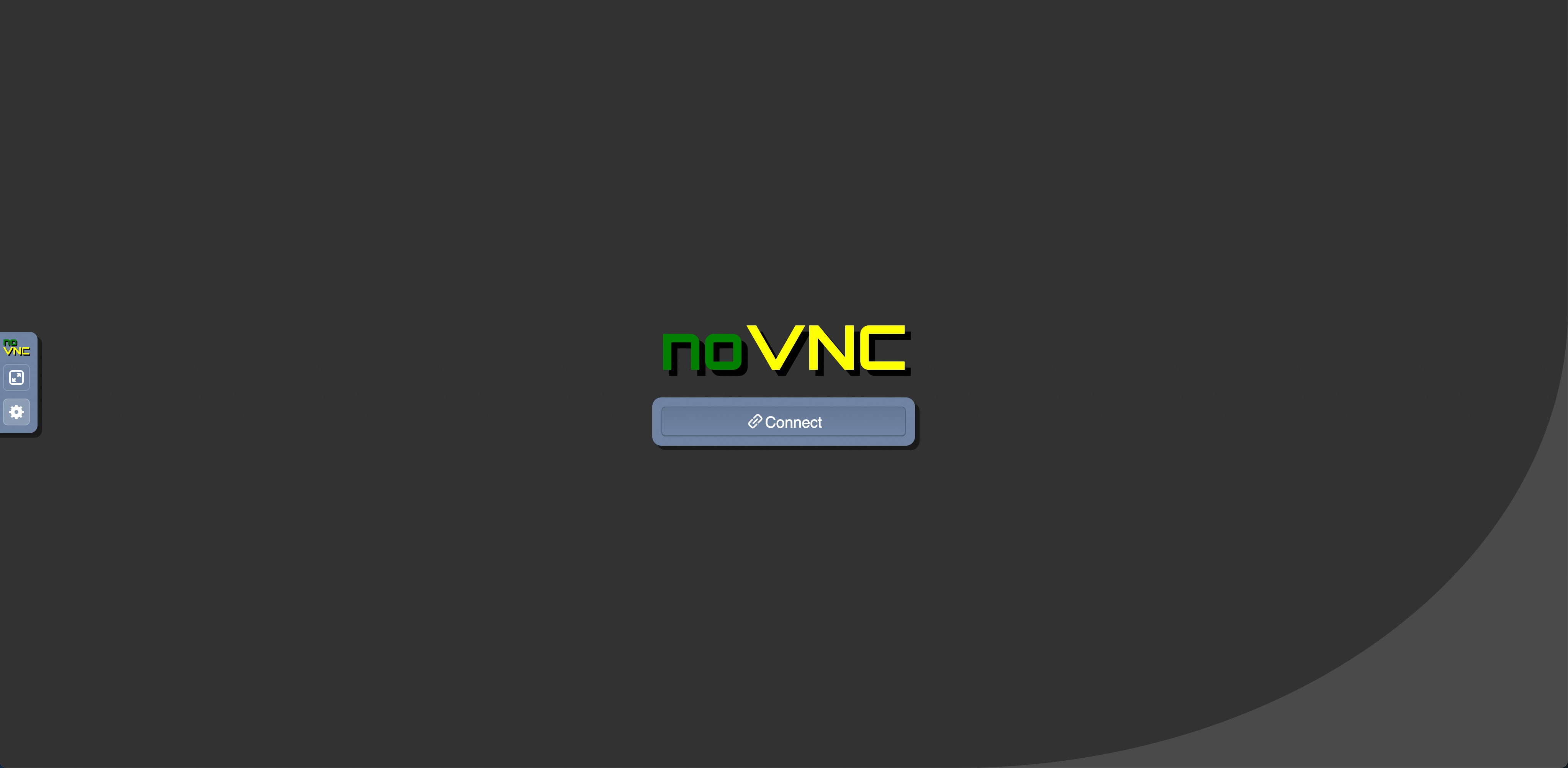

• noVNC URL for browsers (/vnc.html?host=...&port=...&path=...)

The sandbox stays alive for 5 minutes by default; interrupt sooner with Ctrl+C. Uses the prebuilt desktop image by default.

Environment Variables

• SANDBOX_DOMAIN: Sandbox service address (default: localhost:8080)
• SANDBOX_API_KEY: API key if your server requires authentication (optional for local)
• SANDBOX_IMAGE: Sandbox image to use (default: opensandbox/desktop:latest)

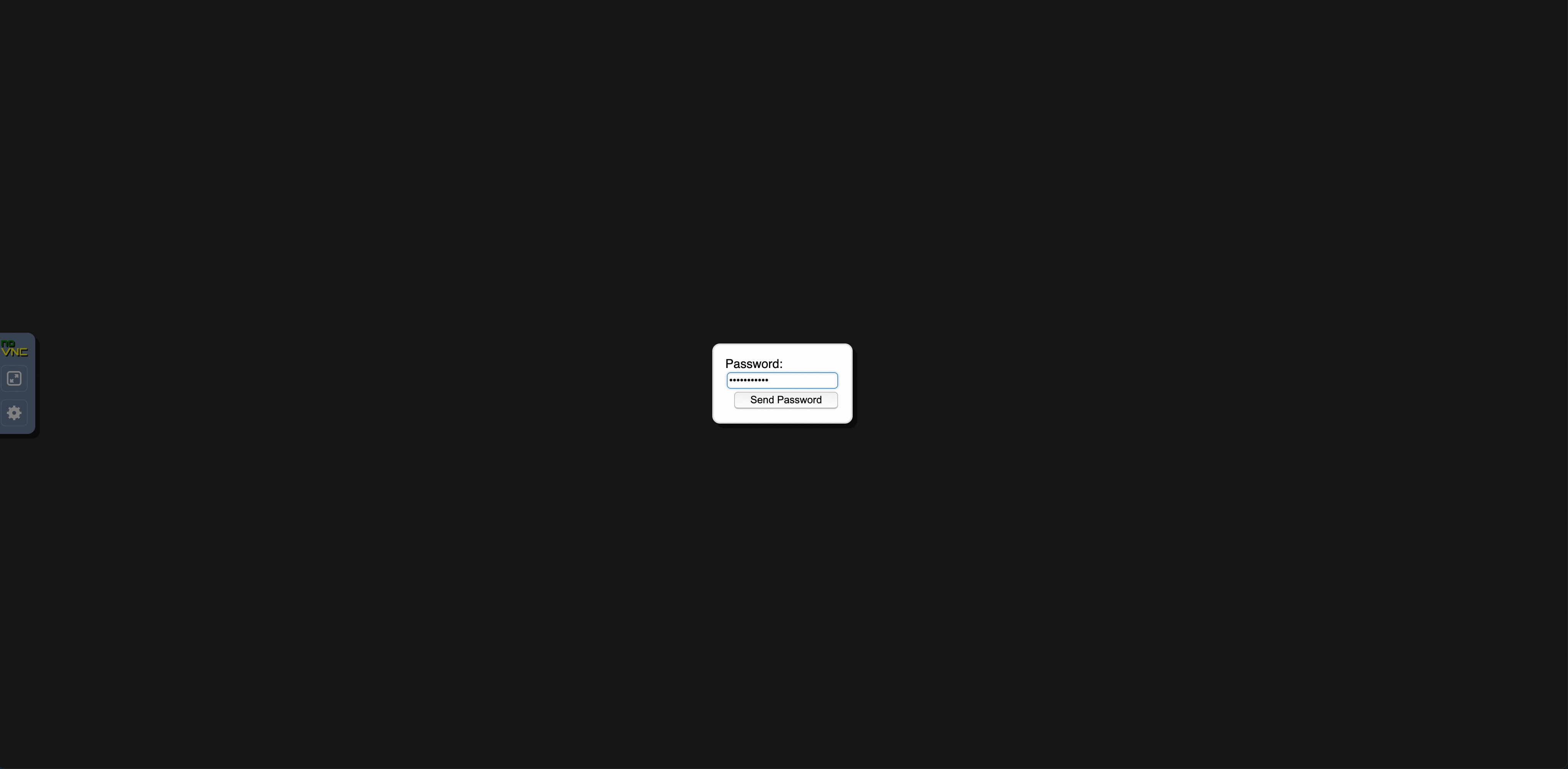

• VNC_PASSWORD: Password for VNC access (default: opensandbox)

References

• noVNC
• x11vnc

---

This page is sourced from: examples/desktop/README.md
